Extruder category

Extruders may be classified by 3 figures, for example, 1-60-24. the first

Range states how many screws the device has, the second number specifies the screw diameter in millimeters (mm) and, the 1/3 quantity specifies the powerful screw length as a a couple of of the screw diameter. in the instance given therefore, a unmarried screw gadget is being described that has a screw of diameter 60 mm and a period of 24 screw diameters (this is, a l/d ratio of 24/1).

Machine production

A reduce-away drawing of a easy single screw gadget is shown .

This indicates the association of the specific parts of the gadget. And barrel are the 2 devices that interact to convey the plastic cloth, melt the material after which force it through the die. the electrical motor force unit and

Gearbox rotate the screw at a predetermined speed. temperature controllers introduction to extrusion are related to heating/cooling elements on the barrel to preserve the temperature at the set-factor temperatures. the ability of the screw and barrel assembly to extrude a given cloth is dependent on the characteristics of the plastics fabric, the characteristics, or production, of the screw and barrel, and the situations under which the machine is operated.

Publish extrusion device

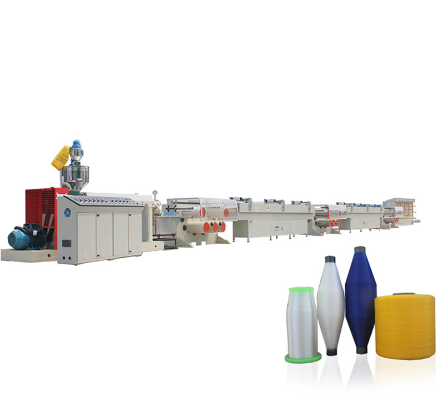

Once the extrudate leaves the die it can either be set to the form to be produced or have its shape altered and then set to form. the device that does that is called the ‘post extrusion gadget’ or the ‘haul off’ and in phrases of size it is also a long way larger than the extruder. one purpose is that plastics take a long term to cool. this cooling manner regularly determines how speedy the road will function.
